WQK/QG帶切割裝置潛水排污泵

攪勻污水池內沉淀污泥，能通過泵口徑的5倍纖維物質

免費電話 在線咨詢

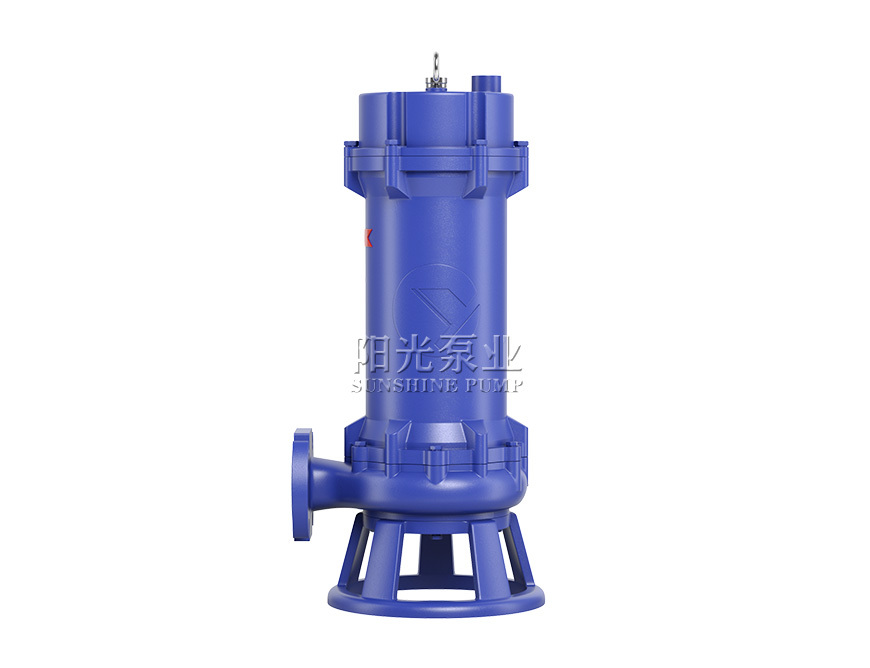

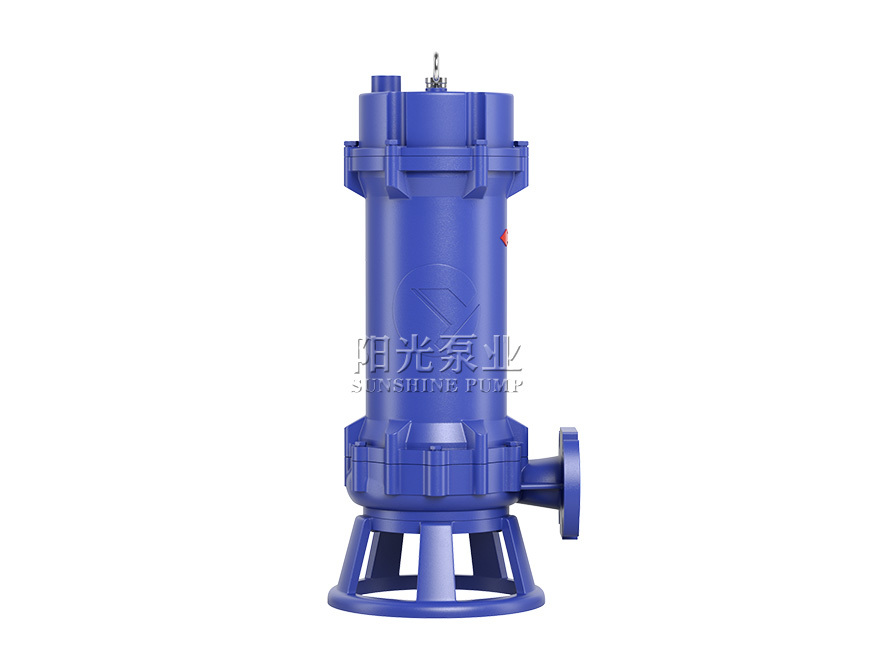

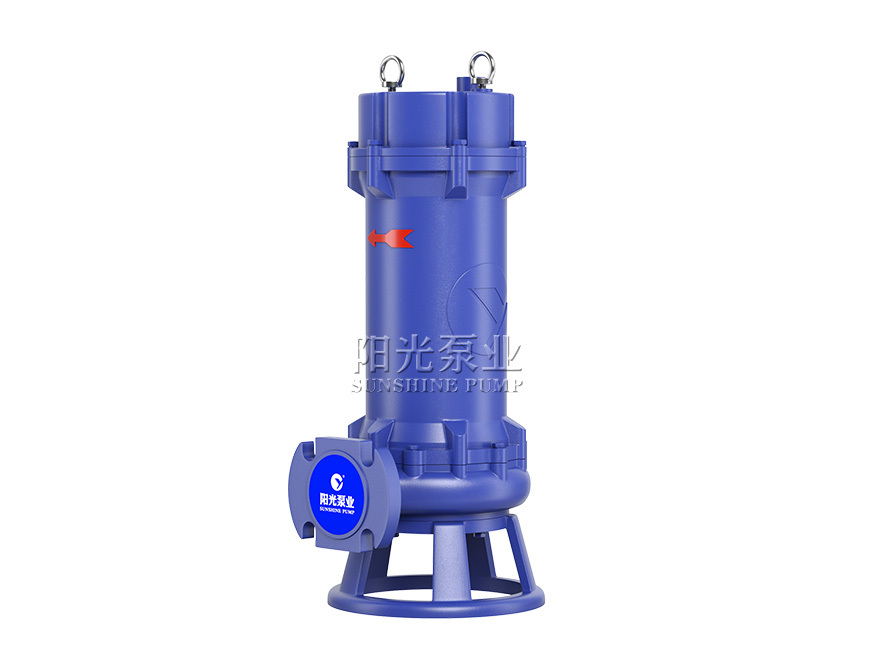

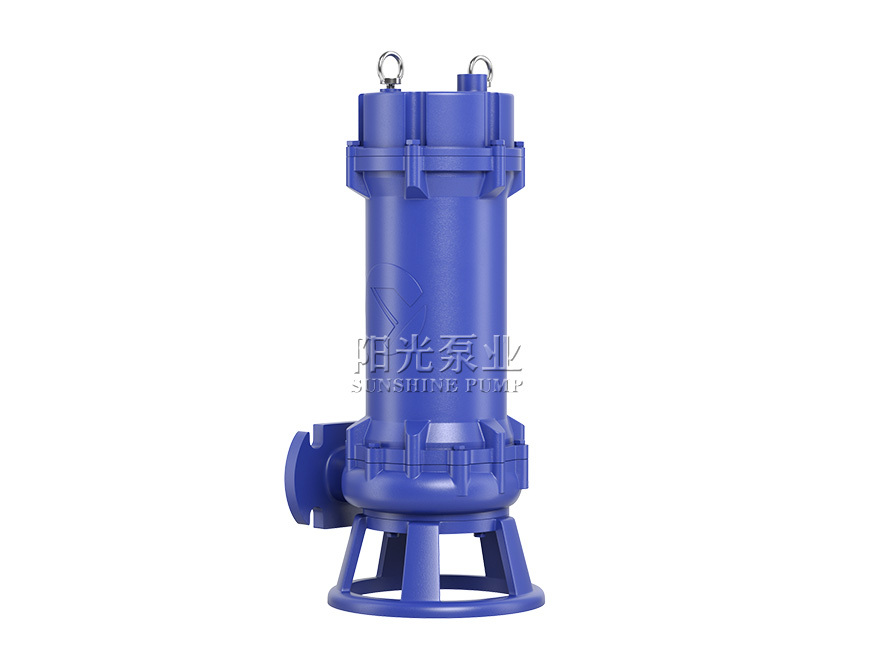

WQK/QG帶切割裝置潛水排污泵

點擊播放

產品簡介

WQK/QG帶切割裝置排污泵具有排污通過能力特別強，帶切割性能好，能將污水中的長纖維、塑料、紙、帶、布條、稻草、繩子等雜質切碎后排出。上海陽光泵業WQK/QG帶切割裝置排污泵是優良的干式電機和水泵組合。WQK系列污水污物潛水排污泵主要用于排送生活廢水、污水、人糞尿及含有短纖維紙屑、木屑、淀粉、泥沙、礦石粒等固體懸浮物和非腐蝕性介質，被抽送液體溫度不超過40℃，密度不大于 1200kg/m3，ph值5～9。該電泵采用雙端面機械密封和旋轉葉輪，葉輪采用不銹鋼、耐磨損、不堵塞、不纏繞、具有體積小、結構緊湊、攜帶方便等優點。

適用范圍

·用于建筑工地、工程基礎施工、市政設施、自來水廠。

·各種高樓大廈的地下室、人防坑洞、地鐵等地下層污水排放。

·中小型企業污水處理及循環水輸送。

·食品、造紙、釀造、鋼鐵及有色金屬、制革、紡織、制藥、水泥廠等廠礦企業的渣漿液抽送。

·養雞場，養豬場，各種養殖業，魚池作抽水清塘、增氧，化糞池等各種場合的人畜糞尿抽送等作用。

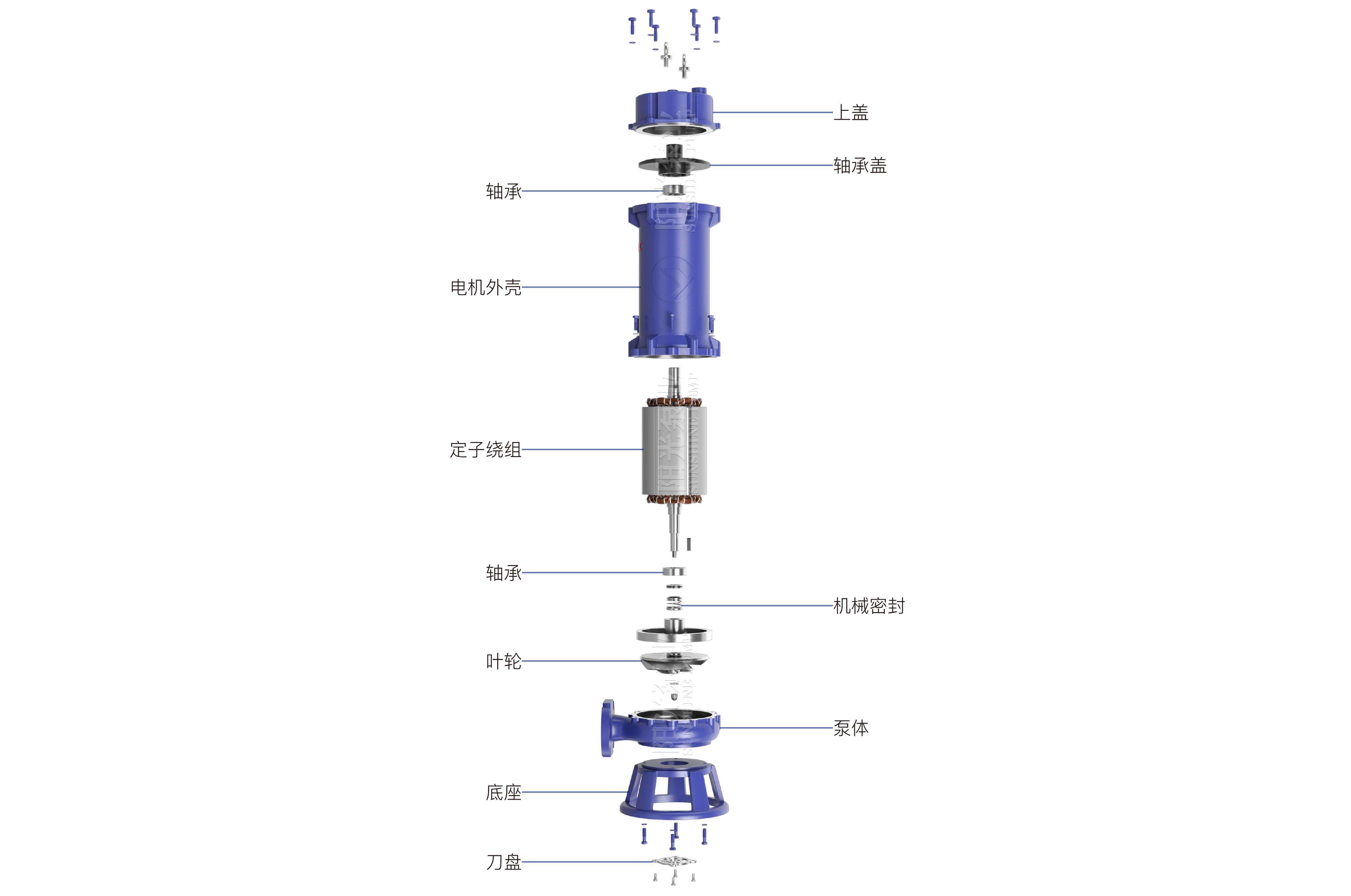

結構圖紙

WQK QG排污潛水泵（帶水印-16號）11.06

性能參數

序號	型號	口徑 (mm)	流量 (m3/h)	揚程 (m)	功率 (kW)	轉速 (r/min)
1	WQK/QG25-8-22-1.1	25	8	22	1.1	2900
2	WQK/QG32-12-15-1.1	32	12	15	1.1	2900
3	WQK/QG40-15-15-1.5	40	15	15	1.5	2900
4	WQK/QG40-15-20-2.2	40	15	20	2.2	2900
5	WQK/QG50-10-10-0.75	50	10	10	0.75	2900
6	WQK/QG50-20-7-0.75	50	20	7	0.75	2900
7	WQK/QG50-20-15-1.5	50	20	15	1.5	2900
8	WQK/QG50-15-25-2.2	50	15	25	2.2	2900
9	WQK/QG50-18-30-3.0	50	18	30	3	2900
10	WQK/QG50-20-40-7.5	50	20	40	7.5	2900
11	WQK/QG50-24-20-4	50	24	20	4	2900
12	WQK/QG50-25-32-5.5	50	25	32	5.5	2900
13	WQK/QG50-20-55-11	50	20	55	11	2900
14	WQK/QG50-20-70-15	50	20	70	15	2900
15	WQK/QG50-20-80-18.5	50	20	80	18.5	2900
16	WQK/QG50-20-90-22	50	20	90	22	2900
17	WQK/QG65-25-15-2.2	65	25	15	2.2	2900
18	WQK/QG65-37-13-3	65	37	13	3	2900
19	WQK/QG65-25-30-4.0	65	25	30	4	2900
20	WQK/QG65-30-40-7.5	65	30	40	7.5	2900
22	WQK/QG65-35-50-11	65	35	50	11	2900
23	WQK/QG65-30-60-15	65	30	60	15	2900
24	WQK/QG65-30-68-18.5	65	30	68	18.5	2900
25	WQK/QG65-30-75-22	65	30	75	22	2900
26	WQK/QG80-40-7-2.2	80	40	7	2.2	2900
27	WQK/QG80-43-13-3	80	43	13	3	2900
28	WQK/QG80-40-15-4	80	40	15	4	2900
29	WQK/QG80-50-20-5.5	80	50	20	5.5	2900
30	WQK/QG80-65-25-7.5	80	65	25	7.5	2900
31	WQK/QG80-60-30-11	80	60	30	11	2900
32	WQK/QG80-60-40-15	80	60	40	15	2900
33	WQK/QG80-60-45-18.5	80	60	45	18.5	2900
34	WQK/QG80-60-50-22	80	60	50	22	2900
35	WQK/QG100-80-10-4.0	100	80	10	4	2900
36	WQK/QG100-110-10-5.5	100	110	10	5.5	2900
37	WQK/QG100-80-20-7.5	100	80	20	7.5	2900
38	WQK/QG100-80-25-11	100	80	25	11	2900
39	WQK/QG100-80-35-15	100	80	35	15	2900
40	WQK/QG100-80-40-18.5	100	80	40	18.5	2900
41	WQK/QG100-80-45-22	100	80	45	22	2900
42	WQK/QG150-100-20-11	150	100	20	11	2900
43	WQK/QG 150-120-15-11	150	120	15	11	2900
44	WQK/QG150-100-30-15	150	100	30	15	2900
45	WQK/QG150-120-25-15	150	120	25	15	2900
46	WQK/QG150-100-36-18.5	150	100	36	18.5	2900
47	WQK/QG150-100-40-22	150	100	40	22	2900
48	WQK/QG200-180-11-11	200	180	11	11	2900
49	WQK/QG200-180-15-15	200	180	15	15	2900
50	WQK/QG200-180-18-18.5	200	180	18	18.5	2900
51	WQK/QG200-200-20-22	200	200	20	22	2900
52	WQK/QG80-80-13-5.5	80	80	13	5.5	1450
53	WQK/QG80-80-20-7.5	80	80	20	7.5	1450
54	WQK/QG100-110-10-5.5	100	110	10	5.5	1450
55	WQK/QG100-100-15-7.5	100	100	15	7.5	1450
56	WQK/QG100-100-25-11	100	100	25	11	1450
57	WQK/QG100-100-30-15	100	100	30	15	1450
58	WQK/QG100-100-35-18.5	100	100	35	18.5	1450
59	WQK/QG100-100-40-22	100	100	40	22	1450
60	WQK/QG100-100-57-45	100	100	57	45	1450
61	WQK/QG100-100-65-55	100	100	65	55	1450
62	WQK/QG100-100-100-110	100	100	100	110	1450
63	WQK/QG100-120-45-30	100	120	45	30	1450
64	WQK/QG100-120-50-37	100	120	50	37	1450
65	WQK/QG100-120-75-75	100	120	75	75	1450
66	WQK/QG100-120-85-90	100	120	85	90	1450
67	WQK/QG125-130-15-11	125	130	15	11	1450
68	WQK/QG125-130-20-15	125	130	20	15	1450
69	WQK/QG150-150-7-5.5	150	150	7	5.5	1450
70	WQK/QG150-145-9-7.5	150	145	9	7.5	1450
71	WQK/QG150-180-11-11	150	180	11	11	1450
72	WQK/QG150-180-15-15	150	180	15	15	1450
73	WQK/QG150-180-20-18.5	150	180	20	18.5	1450
74	WQK/QG150-200-20-22	150	200	20	22	1450
75	WQK/QG150-240-20-30	150	240	20	30	1450
76	WQK/QG150-150-35-37	150	150	35	37	1450
77	WQK/QG150-180-45-45	150	180	45	45	1450
78	WQK/QG150-200-15-15	150	200	15	15	1450
79	WQK/QG150-180-25-22	150	180	25	22	1450
80	WQK/QG150-200-50-55	150	200	50	55	1450
81	WQK/QG150-200-60-75	150	200	60	75	1450
82	WQK/QG150-200-75-90	150	200	75	90	1450
84	WQK/QG150-130-30-22	150	130	30	22	1450
85	WQK/QG150-180-30-30	150	180	30	30	1450
86	WQK/QG150-180-50-55	150	180	50	55	1450
87	WQK/QG150-180-80-110	150	180	80	110	1450
88	WQK/QG150-200-35-37	150	200	35	37	1450
89	WQK/QG150-200-40-45	150	200	40	45	1450
90	WQK/QG150-200-70-90	150	200	70	90	1450
91	WQK/QG150-200-90-132	150	200	90	132	1450
92	WQK/QG150-200-110-185	150	200	110	185	1450
93	WQK/QG150-220-100-160	150	220	100	160	1450
94	WQK/QG200-250-6-7.5	200	250	6	7.5	1450
95	WQK/QG200-300-7-11	200	300	7	11	1450
96	WQK/QG200-250-11-15	200	250	11	15	1450
97	WQK/QG200-250-15-18.5	200	250	15	18.5	1450
98	WQK/QG200-300-16-22	200	300	16	22	1450
99	WQK/QG200-400-10-22	200	400	10	22	1450
100	WQK/QG200-400-13-30	200	400	13	30	1450
101	WQK/QG200-300-15-22	200	300	15	22	1450
102	WQK/QG200-250-22-30	200	250	22	30	1450
103	WQK/QG200-350-25-37	200	350	25	37	1450
104	WQK/QG200-400-25-45	200	400	25	45	1450
105	WQK/QG200-400-30-55	200	400	30	55	1450
106	WQK/QG200-350-40-75	200	350	40	75	1450
107	WQK/QG200-280-50-90	200	280	50	90	1450
108	WQK/QG200-380-28-45	200	380	28	45	1450
109	WQK/QG200-300-28-37	200	300	28	37	1450
110	WQK/QG200-300-32-45	200	300	32	45	1450
111	WQK/QG200-300-40-55	200	300	40	55	1450
112	WQK/QG200-300-60-90	200	300	60	90	1450
113	WQK/QG200-300-65-110	200	300	65	110	1450
114	WQK/QG200-350-10-18.5	200	350	10	18.5	1450
115	WQK/QG200-350-45-75	200	350	45	75	1450
116	WQK/QG200-400-50-90	200	400	50	90	1450
117	WQK/QG250-400-5-11	250	400	5	11	1450
118	WQK/QG200-400-75-132	200	400	75	132	1450
119	WQK/QG200-400-85-160	200	400	85	160	1450
120	WQK/QG200-400-90-185	200	400	90	185	1450
121	WQK/QG250-500-5-15	250	500	5	15	1450
122	WQK/QG250-500-7-18.5	250	500	7	18.5	1450
123	WQK/QG250-500-9-22	250	500	9	22	1450
124	WQK/QG250-500-12-30	250	500	12	30	1450
125	WQK/QG250-600-9-30	250	600	9	30	1450
126	WQK/QG250-600-12-37	250	600	12	37	1450
127	WQK/QG250-600-15-45	250	600	15	45	1450
128	WQK/QG250-600-20-55	250	600	20	55	1450
129	WQK/QG250-600-25-75	250	600	25	75	1450
130	WQK/QG250-600-30-90	250	600	30	90	1450
131	WQK/QG250-600-40-110	250	600	40	110	1450
132	WQK/QG250-600-50-132	250	600	50	132	1450
133	WQK/QG250-600-60-160	250	600	60	160	1450
134	WQK/QG250-600-70-185	250	600	70	185	1450
135	WQK/QG250-750-75-200	250	750	75	200	1450
136	WQK/QG250-520-8-22	250	520	8	22	980
137	WQK/QG300-650-5-18.5	300	650	5	18.5	1450
138	WQK/QG300-650-7-22	300	650	7	22	1450
139	WQK/QG300-800-7-30	300	800	7	30	1450
140	WQK/QG300-800-9-37	300	800	9	37	1450
141	WQK/QG300-800-12-45	300	800	12	45	1450
142	WQK/QG300-500-15-45	300	500	15	45	1450
143	WQK/QG300-800-15-55	300	800	15	55	1450
144	WQK/QG300-600-20-55	300	600	20	55	1450
145	WQK/QG300-800-20-75	300	800	20	75	1450
146	WQK/QG300-950-20-90	300	950	20	90	1450
147	WQK/QG300-800-25-90	300	800	25	90	1450
148	WQK/QG300-1000-25-110	300	1000	25	110	1450
149	WQK/QG300-800-32-110	300	800	32	110	1450
150	WQK/QG300-800-36-132	300	800	36	132	1450
151	WQK/QG300-800-40-160	300	800	40	160	1450
152	WQK/QG300-900-40-185	300	900	40	185	1450
153	WQK/QG300-1000-45-200	300	1000	45	200	1450
154	WQK/QG300-1000-55-315	300	1000	55	315	1450
155	WQK/QG300-1200-45-250	300	1200	45	250	1450
156	WQK/QG350-1000-6-37	350	1000	6	37	1450
157	WQK/QG350-1000-10-55	350	1000	10	55	1450
158	WQK/QG350-1100-6-37	350	1100	6	37	980
159	WQK/QG350-1100-10-55	350	1100	10	55	980
160	WQK/QG350-1000-15-75	350	1000	15	75	1450
161	WQK/QG350-1000-18-90	350	1000	18	90	1450
162	WQK/QG350-1100-38-185	350	1100	38	185	1450
163	WQK/QG350-1200-8-45	350	1200	8	45	1450
164	WQK/QG350-1200-18-90	350	1200	18	90	980
165	WQK/QG350-1200-35-160	350	1200	35	160	980
166	WQK/QG350-1300-8-45	350	1300	8	45	980
167	WQK/QG350-1500-12-75	350	1500	12	75	980
168	WQK/QG350-1300-20-110	350	1300	20	110	1450
169	WQK/QG350-1500-4-30	350	1500	4	30	980
171	WQK/QG350-1200-18-90	350	1200	18	90	980
172	WQK/QG350-1500-20-132	350	1500	20	132	980
173	WQK/QG350-1600-16-110	350	1600	16	110	980
174	WQK/QG350-1100-28-132	350	1100	28	132	1450
175	WQK/QG350-1500-20-132	350	1500	20	132	980
176	WQK/QG350-1000-35-160	350	1000	35	160	1450
177	WQK/QG350-1200-35-160	350	1200	35	160	980
178	WQK/QG350-1300-35-200	350	1300	35	200	1450
179	WQK/QG350-1500-45-315	350	1500	45	315	1450
180	WQK/QG350-1500-36-250	350	1500	36	250	1450
181	WQK/QG400-1300-5-37	400	1300	5	37	980
182	WQK/QG400-1300-8-55	400	1300	8	55	1450
183	WQK/QG400-1300-13-75	400	1300	13	75	1450
184	WQK/QG400-1300-16-90	400	1300	16	90	1450
185	WQK/QG400-1500-8-55	400	1500	8	55	980
186	WQK/QG400-1500-15-90	400	1500	15	90	980
187	WQK/QG400-1500-17-110	400	1500	17	110	1450
188	WQK/QG400-1500-30-200	400	1500	30	200	1450
189	WQK/QG400-1600-20-160	400	1600	20	160	1450
190	WQK/QG400-1600-22-160	400	1600	22	160	980
191	WQK/QG400-1600-25-185	400	1600	25	185	1450
192	WQK/QG400-1700-16-132	400	1700	16	132	1450
193	WQK/QG400-1800-30-250	400	1800	30	250	1450
194	WQK/QG400-2000-36-315	400	2000	36	315	1450
195	WQK/QG400-1700-6-45	400	1700	6	45	980
196	WQK/QG400-1700-10-75	400	1700	10	75	980
197	WQK/QG400-1500-8-55	400	1500	8	55	980
198	WQK/QG400-1700-10-75	400	1700	10	75	980
199	WQK/QG400-1800-15-110	400	1800	15	110	980
200	WQK/QG400-2000-15-132	400	2000	15	132	980
202	WQK/QG400-1600-22-160	400	1600	22	160	980
203	WQK/QG400-1500-26-160	400	1500	26	160	980
204	WQK/QG400-2000-20-185	400	2000	20	185	980
207	WQK/QG400-1800-15-110	400	1800	15	110	980
208	WQK/QG400-2200-28-250	400	2200	28	250	980
209	WQK/QG400-2300-22-200	400	2300	22	200	980
212	WQK/QG500-2000-8-75	500	2000	8	75	980
213	WQK/QG500-2000-10-90	500	2000	10	90	980
214	WQK/QG500-2200-5-55	500	2200	5	55	980
215	WQK/QG500-2500-8-90	500	2500	8	90	740
216	WQK/QG500-2500-10-110	500	2500	10	110	980
217	WQK/QG500-2600-16-160	500	2600	16	160	980
218	WQK/QG500-2700-6-75	500	2700	6	75	740
219	WQK/QG500-2800-10-132	500	2800	10	132	980
220	WQK/QG500-3100-10-132	500	3100	10	132	740
223	WQK/QG500-3000-14-160	500	3000	14	160	740
224	WQK/QG500-3000-15-185	500	3000	15	185	980
225	WQK/QG500-3000-21-250	500	3000	21	250	980
226	WQK/QG500-3000-35-400	500	3000	35	400	980
227	WQK/QG500-3100-10-132	500	3100	10	132	740
228	WQK/QG500-3500-15-200	500	3500	15	200	980
229	WQK/QG500-3500-25-315	500	3500	25	315	980
230	WQK/QG500-4000-32-550	500	4000	32	550	980
231	WQK/QG600-3000-6-90	600	3000	6	90	740
232	WQK/QG600-3200-7-110	600	3200	7	110	980
233	WQK/QG600-3700-8-132	600	3700	8	132	980
234	WQK/QG600-3800-6-110	600	3800	6	110	740
235	WQK/QG600-4000-8-132	600	4000	8	132	740
236	WQK/QG600-3700-10-160	600	3700	10	160	980
237	WQK/QG600-4000-10-160	600	4000	10	160	740
238	WQK/QG600-3700-12-185	600	3700	12	185	980
239	WQK/QG600-4500-12-200	600	4500	12	200	980
240	WQK/QG600-4000-18-250	600	4000	18	250	980
241	WQK/QG600-4500-20-315	600	4500	20	315	980
242	WQK/QG600-5000-22-400	600	5000	22	400	980
243	WQK/QG600-5500-25-550	600	5500	25	550	980
